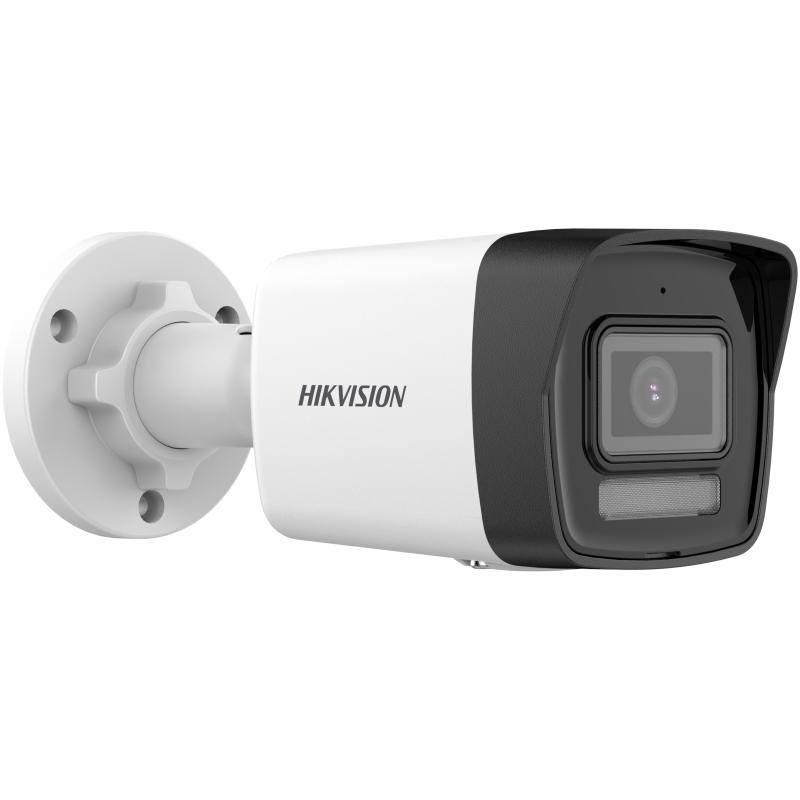

8 MP Smart Hybrid Light Fixed Bullet Network Camera

Camera Specification

1. Image Sensor
   1/2.7" Progressive Scan CMOS
2. Maximum Resolution
   3840 × 2160
3. Minimum Illumination
   Color: 0.01 Lux @ (F2.0, AGC ON)
   B/W: 0 Lux with IR
4. Shutter Time
   1/3 s to 1/100,000 s
5. Day & Night Mode
   IR cut filter
6. Angle Adjustment
   Pan: 0° to 360°
   Tilt: 0° to 90°
   Rotate: 0° to 360°
7. Lens Type
   Fixed focal lens (2.8 mm / 4 mm optional)
8. Focal Length & Field of View (FOV)
   2.8 mm: H 113°, V 62°, D 134°
   4 mm: H 90°, V 49°, D 108°
9. Lens Mount
   M12
10. Iris Type
    Fixed
11. Aperture
    F2.0
12. DORI Distance
    2.8 mm: D 79 m, O 31 m, R 15 m, I 7 m
    4 mm: D 102 m, O 40 m, R 20 m, I 10 m
13. Illuminator
    Type: IR & White Light
    Range: Up to 30 m
    Smart Supplement Light: Yes
    IR Wavelength: 850 nm
14. Video Compression
    Main Stream: H.265+/H.265/H.264+/H.264
    Sub Stream: H.265/H.264/MJPEG
15. Main Stream Resolution & FPS
    3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720
    12.5 fps (50 Hz) / 15 fps (60 Hz)
16. Sub-Stream FPS
    1280 × 720 / 640 × 480 / 640 × 360
    12.5 fps (50 Hz) / 15 fps (60 Hz)
17. Video Bit Rate
    32 Kbps to 16 Mbps
18. Video Encoding Standards
    H.264 (Baseline/Main/High Profile)
    H.265 (Main Profile)
19. Bit Rate Control
    CBR / VBR
20. Scalable Video Coding (SVC)
    Supported (H.264 & H.265)
21. Region of Interest (ROI)
    1 fixed region for main stream
22. Audio
    Mono sound
    Noise filtering: Yes
    Sampling rate: 8 kHz / 16 kHz
    Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
    Bit rate: 16–160 Kbps (varies by codec)
23. Network Protocols
    TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
24. Security Features
    Password protection, watermark, digest authentication, MAC address filtering, security audit log
25. User Access
    Up to 32 users (Administrator / Operator / User levels)
26. Live View Support
    Up to 6 channels simultaneously
27. Client Software
    iVMS-4200, Hik-Connect
28. Web Browser Support
    IE 10/11 (plug-in required)
    Chrome 57+, Firefox 52+, Edge 89+
29. Image Processing Features
    WDR 120 dB
    BLC / HLC / 3D DNR
    Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
30. Privacy Mask
    4 programmable polygon privacy masks
31. Interface
    Ethernet: RJ45 10M/100M self-adaptive
    Built-in microphone: Yes
    Reset key: Available on -F model
    MicroSD slot: Up to 512 GB (-F model)
32. Event Features
    Motion detection (human/vehicle classification)
    Video tampering alarm
    Exception detection
    Linkage: FTP / email / recording / capture / surveillance center notification
33. Power Supply
    12 VDC ± 25% (0.41 A, max 5 W)
    PoE: IEEE 802.3af (Class 3, max 6.5 W)
34. Material
    Metal & Plastic
35. Dimensions
    170.8 mm × 66 mm × 69.1 mm
36. Weight
    Approx. 285 g (net) / 481 g (with package)
37. Operating Conditions
    -30 °C to 60 °C
    Humidity ≤ 95% (non-condensing)
38. Protection Rating
    IP67 (IEC 60529-2013)
