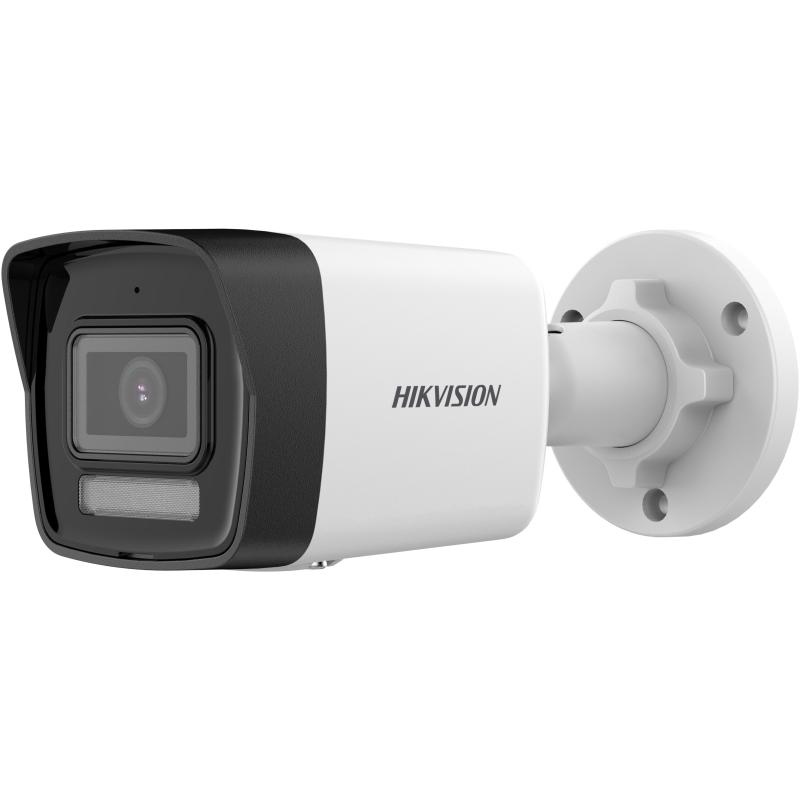

6 MP Smart Hybrid Light Fixed Bullet Network Camera

Camera Specifications

1. Image Sensor

1.1 Type: 1/2.4" Progressive Scan CMOS

2. Max. Resolution

2.1 Resolution: 3200 × 1800

3. Min. Illumination

3.1 Color: 0.005 Lux @ (F1.6, AGC ON)
3.2 Black & White: 0 Lux with IR
3.3 Night Vision: IR supported

4. Shutter Time

4.1 Range: 1/3 s to 1/100,000 s

5. Day & Night

5.1 IR cut filter (ICR)

6. Angle Adjustment

6.1 Pan: 0° to 360°
6.2 Tilt: 0° to 90°
6.3 Rotate: 0° to 360°

7. Lens

7.1 Lens Type: Fixed focal lens (2.8 mm / 4 mm optional)
7.2 Mount: M12
7.3 Iris Type: Fixed
7.4 Aperture: F1.6

7.5 Focal Length & Field of View (FOV)

• 2.8 mm:
  7.5.1 Horizontal: 105°
  7.5.2 Vertical: 55°
  7.5.3 Diagonal: 127°
• 4 mm:
  7.5.4 Horizontal: 78°
  7.5.5 Vertical: 38°
  7.5.6 Diagonal: 96°

8. DORI

8.1 2.8 mm: D 76 m / O 30 m / R 15 m / I 7 m
8.2 4 mm: D 115 m / O 45 m / R 23 m / I 11 m

9. Illuminator

9.1 Type: IR + White Light
9.2 Range: Up to 30 m
9.3 Smart Supplement Light: Yes
9.4 IR Wavelength: 850 nm

10. Video

10.1 Main Stream:

• 50 Hz: 20 fps (3200×1800 / 2688×1520 / 1920×1080 / 1280×720)
• 60 Hz: 20 fps (same resolutions)

10.2 Sub-Stream:

• 50 Hz: 20 fps (1280×720 / 640×480 / 640×360)
• 60 Hz: 20 fps (same resolutions)

10.3 Compression: H.265+/H.265/H.264+/H.264
10.4 Bit Rate: 32 Kbps – 16 Mbps
10.5 ROI: 1 fixed region
10.6 SVC: Not specified

11. Audio

11.1 Type: Mono sound
11.2 Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
11.3 Sampling Rate: 8 kHz / 16 kHz
11.4 Noise Filtering: Yes

12. Network

12.1 Protocols: TCP/IP, HTTP, HTTPS, RTSP, RTP, NTP, IPv6, FTP, SMTP, QoS, UDP, etc.
12.2 Live View: Up to 6 channels
12.3 APIs: ONVIF (S/T/G), ISAPI, SDK
12.4 Users: Up to 32 users (3 levels)
12.5 Security: Password protection, watermark, authentication, MAC filtering

13. Image Processing

13.1 WDR: 120 dB
13.2 SNR: ≥ 52 dB
13.3 Enhancement: BLC, HLC, 3D DNR
13.4 Day/Night Mode: Auto / Day / Night / Schedule
13.5 Image Settings: Brightness, contrast, saturation, sharpness, white balance, gain
13.6 Privacy Mask: 4 polygon zones

14. Interface

14.1 Ethernet: 1 RJ45 (10/100 Mbps)
14.2 Built-in Microphone: Yes
14.3 Storage: MicroSD support up to 256 GB
14.4 Reset Button: Available (model dependent)

15. Events

15.1 Motion detection (human/vehicle support)
15.2 Video tampering alarm
15.3 Exception alerts
15.4 Linkage: FTP / email / NVR / capture / recording

16. General

16.1 Power:

• 12 VDC ±25%, max 5 W
• PoE: IEEE 802.3af (Class 3), max 6.5 W

16.2 Material: Metal + Plastic
16.3 Dimensions: 170.8 × 66 × 69.1 mm
16.4 Weight: ~285 g
16.5 Operating Temp: -30 °C to 60 °C
16.6 Humidity: ≤ 95%

17. Protection & Standards

17.1 IP Rating: IP67
17.2 EMC: CE / RCM / IC compliant
17.3 Safety: UL / CB / CE-LVD / BIS
17.4 Environmental: RoHS / WEEE / REACH compliant
