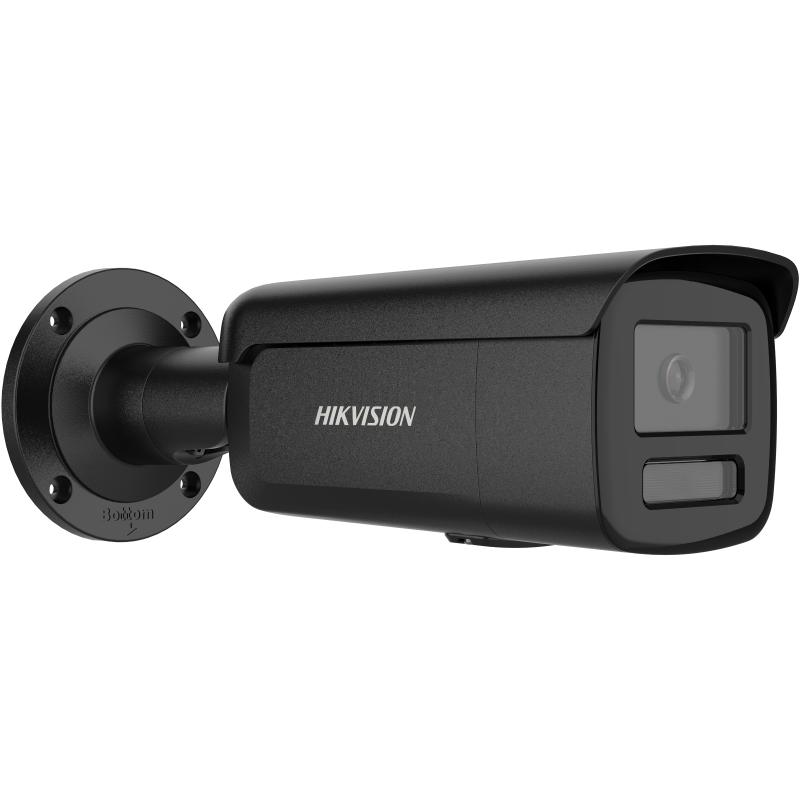

4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera

Camera Specifications

1. Image Sensor

1.1 Type: 1/1.8" Progressive Scan CMOS

2. Max. Resolution

2.1 Resolution: 2688 × 1520

3. Min. Illumination

3.1 Color: 0.0001 Lux @ (F1.0, AGC ON)
3.2 Black & White: 0 Lux with light
3.3 Extremely low-light performance supported

4. Shutter Time

4.1 Range: 1 s to 1/100,000 s

5. Day & Night

5.1 IR cut filter (ICR)

6. Angle Adjustment

6.1 Pan: 0° to 360°
6.2 Tilt: 0° to 90°
6.3 Rotate: 0° to 360°

7. Lens

7.1 Lens Type: Fixed focal (2.8 mm / 4 mm optional)
7.2 Mount: M16
7.3 Iris Type: Fixed
7.4 Aperture: F1.0

7.5 Focal Length & Field of View (FOV)

• 2.8 mm:
  7.5.1 Horizontal: 111.1°
  7.5.2 Vertical: 57.6°
  7.5.3 Diagonal: 138.5°
• 4 mm:
  7.5.4 Horizontal: 95.2°
  7.5.5 Vertical: 48.3°
  7.5.6 Diagonal: 117.4°

8. Depth of Field

8.1 2.8 mm: 2.5 m to ∞
8.2 4 mm: 3.1 m to ∞

9. DORI

9.1 2.8 mm: D 61 m / O 24 m / R 12 m / I 6 m
9.2 4 mm: D 75 m / O 30 m / R 15 m / I 7 m

10. Illuminator

10.1 Type: IR + White Light
10.2 Range: Up to 60 m
10.3 Smart Supplement Light: Yes
10.4 IR Wavelength: 850 nm

11. Video

11.1 Main Stream:

• 50 Hz: 25 fps (2688×1520 / 1920×1080 / 1280×720)
• 60 Hz: 30 fps (same resolutions)

11.2 Sub-Stream:

• 50 Hz: 25 fps (1280×720 / 640×480 / 640×360)
• 60 Hz: 30 fps (same resolutions)

11.3 Third Stream:

• 50/60 Hz: 10 fps (up to 1920×1080 supported under certain settings)

11.4 Compression:

• Main: H.265 / H.264 / H.264+ / H.265+
• Sub: H.265 / H.264 / MJPEG
• Third: H.265 / H.264

11.5 Bit Rate: 32 Kbps – 8 Mbps
11.6 ROI: 1 fixed region (main stream)
11.7 SVC: Supported (H.264/H.265)

12. Audio

12.1 Not explicitly listed (depends on variant/model)

13. Network

13.1 Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, RTP, NTP, SMTP, IPv4/IPv6, SSL/TLS, SNMP, WebSocket, SFTP, etc.
13.2 Live View: Up to 6 channels
13.3 Users: Up to 32 users (3 levels)
13.4 APIs: ONVIF (S/T/G), ISAPI, SDK, ISUP
13.5 Security: TLS 1.1/1.2/1.3, HTTPS, 802.1X, MAC filtering, watermark, logs

14. Storage

14.1 MicroSD support up to 512 GB
14.2 NAS support (NFS, SMB/CIFS)
14.3 ANR supported (auto recovery recording)

15. Image Processing

15.1 WDR: 130 dB
15.2 SNR: ≥ 52 dB
15.3 Stabilization: EIS
15.4 Enhancement: BLC, HLC, 3D DNR, Defog, Distortion Correction
15.5 Day/Night: Auto / Day / Night / Schedule
15.6 Privacy Mask: 4 polygon zones

16. Smart Functions

16.1 Face Capture: Supported
16.2 Perimeter Protection: Line crossing, intrusion, region entry/exit
16.3 Scene Change Detection: Supported

17. Interface

17.1 Ethernet: 1 RJ45 (10/100 Mbps)
17.2 Reset Button: Yes
17.3 Storage Slot: Built-in microSD slot

18. Events

18.1 Motion detection (human/vehicle)
18.2 Video tampering alarm
18.3 Exception alerts
18.4 Smart events supported
18.5 Linkage: FTP / NAS / email / capture / recording / notification

19. General

19.1 Power:

• 12 VDC ±25%, max 10 W
• PoE: IEEE 802.3af (Class 3), max 12.5 W

19.2 Material: Full metal (body, cover, bracket)
19.3 Dimensions: 286.7 × 93.3 × 91.2 mm
19.4 Weight: ~1200 g
19.5 Operating Temp: -30 °C to 60 °C
19.6 Humidity: ≤ 95%

20. Protection & Standards

20.1 IP Rating: IP67
20.2 Anti-Corrosion: NEMA 4X
20.3 EMC: CE / RCM / IC / KC compliant
20.4 Safety: UL / CB / CE-LVD
20.5 Environmental: RoHS compliant
